  • Hexagon Pillar One End Threded One End Tapped Threaded Length Configuration Type/Both Ends Threaded One End Threded Length Configuration Type

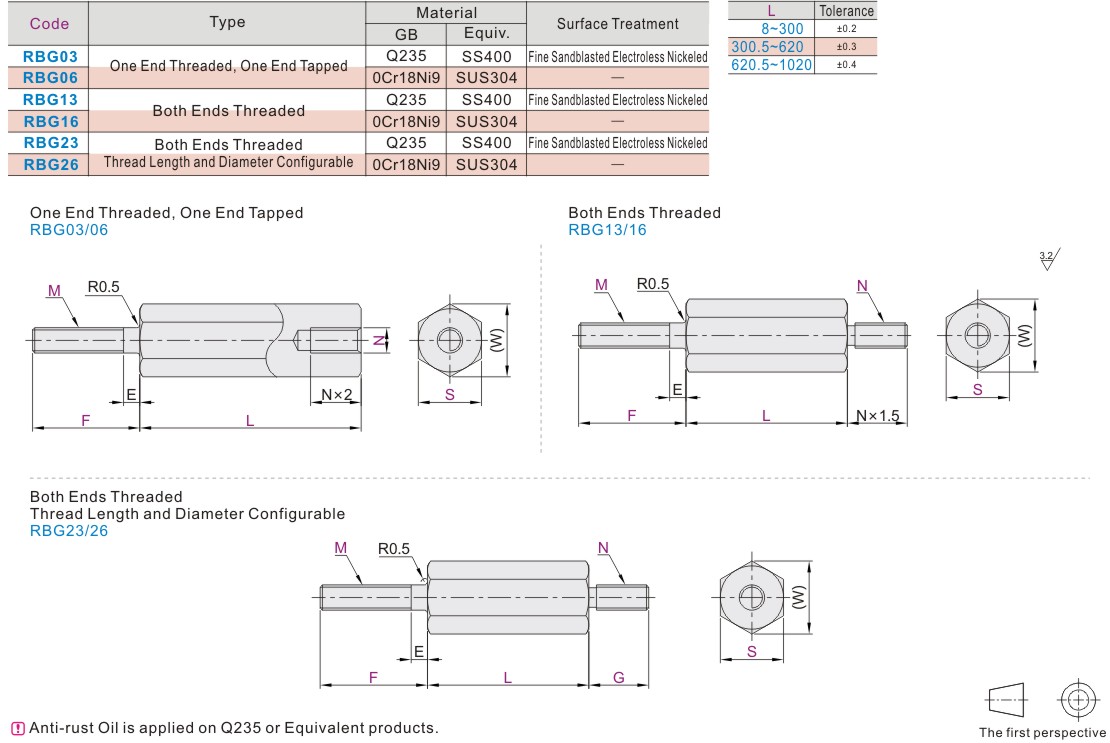

Hexagon Pillar One End Threded One End Tapped Threaded Length Configuration Type/Both Ends Threaded One End Threded Length Configuration Type

Type: Pillar

Single/Component: Single

Pillar Shape: Circular Pillar

Shaft End Shape: One End Threaded, Another End Internally Threaded

Pillar Material: SS400/SUS304

Pillar Surface Treatment: None/Blackened/Electroless Nickel Plating

Detail

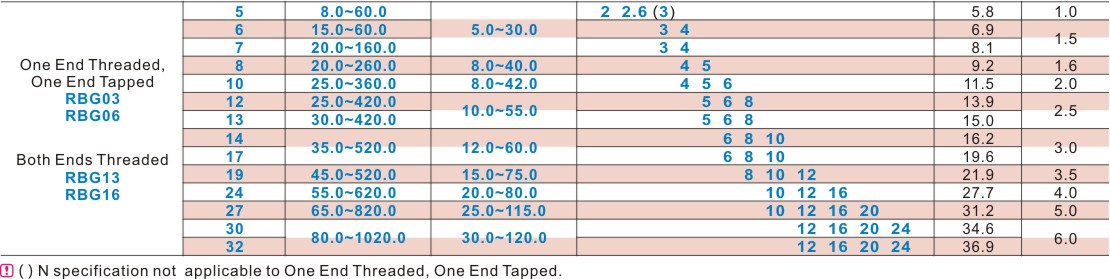

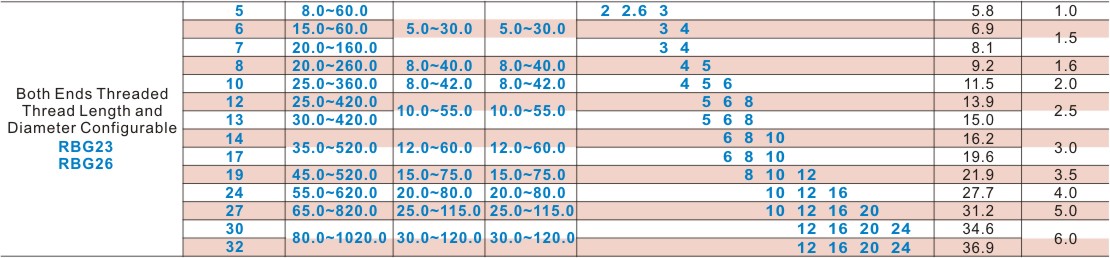

Avaliable machining parameters
