Home  Positioning and fixing guide  Pillar · base · pillar fixing clip  Stepped Hexagon Pillar Both Ends Tapped Standard/Stepped Configuration Type
  • Stepped Hexagon Pillar Both Ends Tapped Standard/Stepped Configuration Type

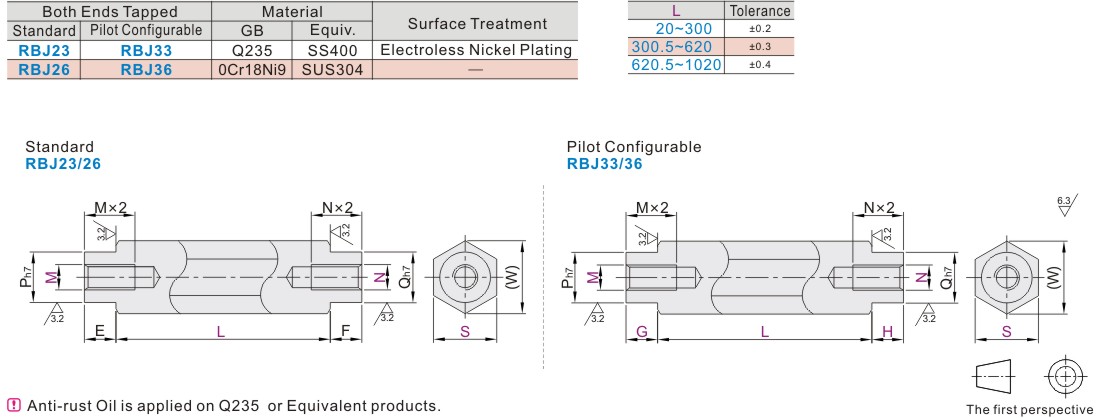

Stepped Hexagon Pillar Both Ends Tapped Standard/Stepped Configuration Type

Type: Pillar

Single/Component: Single

Pillar Shape: Stepped Hexagonal Pillar on Both Ends

Shaft End Shape: Internally Threaded on Both Ends

Size Selection Method: Stepped Size Specification Type/Stepped Size Fixed Type/Stepped Size Specification Type

Pillar Material: SS400/SUS304

Pillar Surface Treatment: None/Blackened/Electroless Nickel Plating

Detail
Avaliable machining parameters
