Micro Ball Bushing Guide Assembly Compact

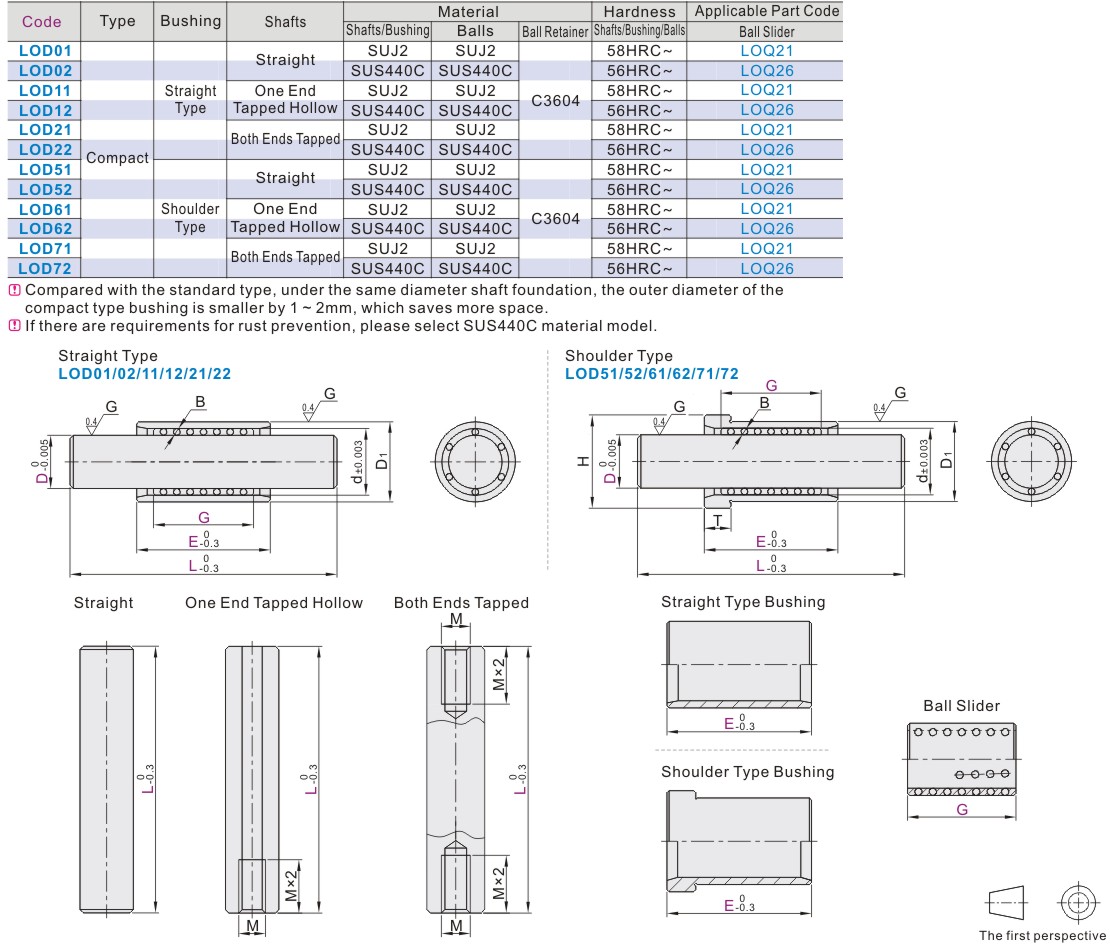

Type: Ball Cage Guide Component
Sleeve Type: Compact Type.
Material options for Sleeve/Guide Shaft and Ball: SUJ2 or SUS440C
When using sleeves, you can choose between shoulderless and shoulder type.
When using guide shafts, you can select from plain shaft type, internally threaded pipe type at one end, and internally threaded type at both ends.
In comparison to the standard type, the compact type has a smaller outer diameter for the sleeve, saving 1-2mm of space when using the same guide shaft.
If rust resistance is a concern, consider choosing specifications with SUS440C material.
Detail
Frequently Asked Questions about This Product
1. What are the components of this product?
It consists of three parts: the shaft, the bushing, and the ball slide sleeve.
2. How to carry out maintenance?
This product is coated with anti-rust oil when leaving the factory. It is recommended to first clean it with alcohol or kerosene, wipe it dry with a rag, and then apply lubricating oil (lithium soap-based grease is recommended). Supplement the grease in a timely manner every three months. If the usage environment is dusty, you can put on a protective cover.
3. Is the product shipped after being assembled?
Each set of components is assembled and individually packaged for shipment. Due to reasons such as inspection or transportation, there may be individual parts scattered in the packaging bag. You need to assemble them by yourself when using them. When assembling, first fix the shaft, install the ball slide sleeve to the position where the equipment will use it, and then put on the bushing.
4. Will the ball slide sleeve in the middle slide out during use?
This product has a limited stroke. At the extreme stroke, the ball slide sleeve will slide out to half of its length, while at the perfect stroke, it will not slide out of the bushing.
5. What is the stroke size?

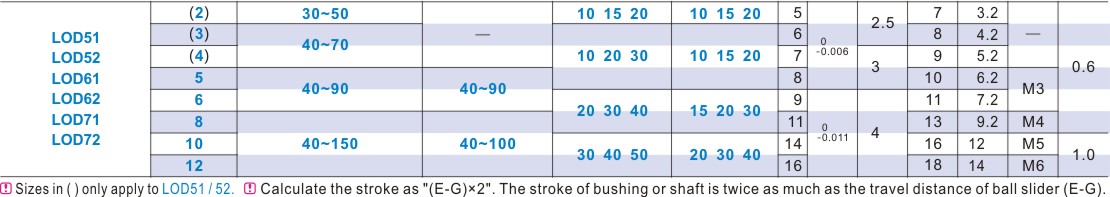

The perfect stroke = (E - G) * 2, and the extreme stroke = (E - G) * 2 + 2G.
