Straight Linear Bearing With Flange Standard Type Single Liner Countersunk Pass

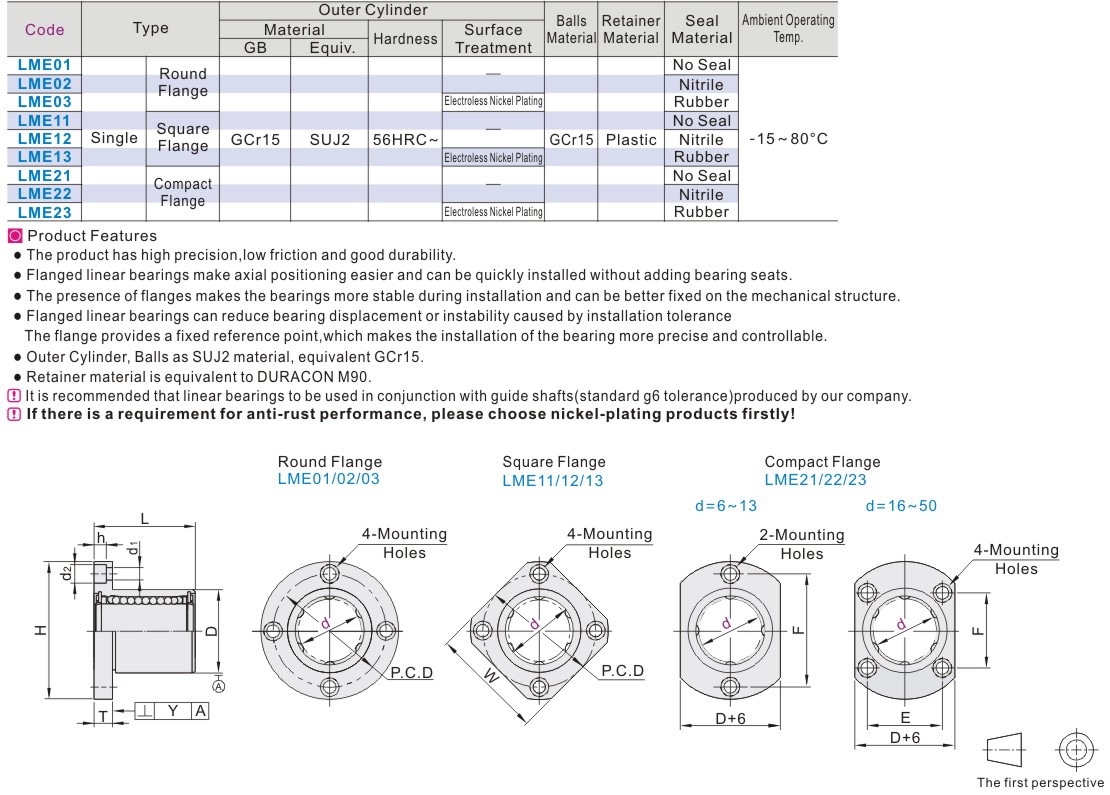

Type: Linear Bearing

Structure: Standard

Linear Bearing Material: SUJ2

Linear Bearing Style: Single Liner

Cage Material Options: Resin, Stainless Steel

Seal Ring Material Options: Nitrile Rubber, None, Fluoro Rubber

Surface Treatment for Linear Bearings: None, Electrolytic Nickel Plating

Linear Bearing Shapes: Round Flange Type, Square Flange Type, Opposite Side Flange Type

Cost-Effectiveness Options: Standard Type, Domestic Standard Type, Imported Standard Type
