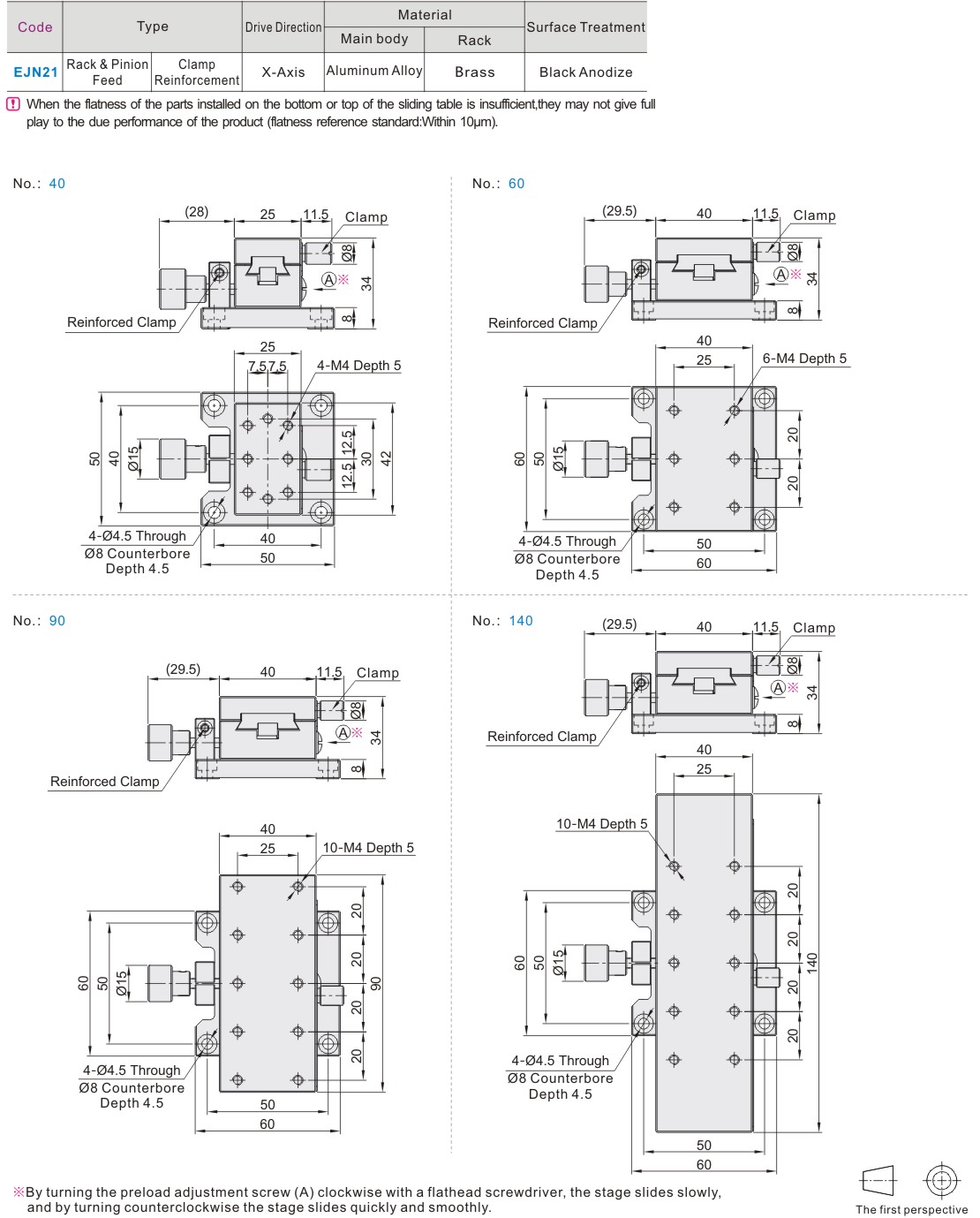

Manual Positioning Stage - Swallowtail Groove / Precision Gear And Rack Drive Type / X-Axis Reinforced Locking Type

Type: Manual positioning stage

Guide rail type: Dovetail groove type

Transmission: Direction X axis

Feeding method: Reinforced clamping rack and pinion drive type

Material: Aluminum alloy

Surface treatment: Black anodized

Thickness: Standard


If the parts installed on the bottom or top of the slide table are not flat enough, the product may not be able to perform as it should. (Reference standard for flatness: within 10um)
