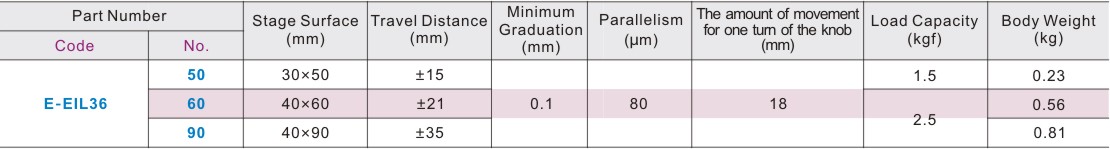

Manual Positioning Stage - Economical Dovetail Groove Type / Gear Rack Drive Type / Xy Axis And Thin Type

Type: Manual positioning stage

Guide rail type: Dovetail groove type

Transmission: Direction XY axis

Feeding method: Rack and pinion driven type

Material: Aluminum alloy

Surface treatment: Black anodized

Thickness: Thin

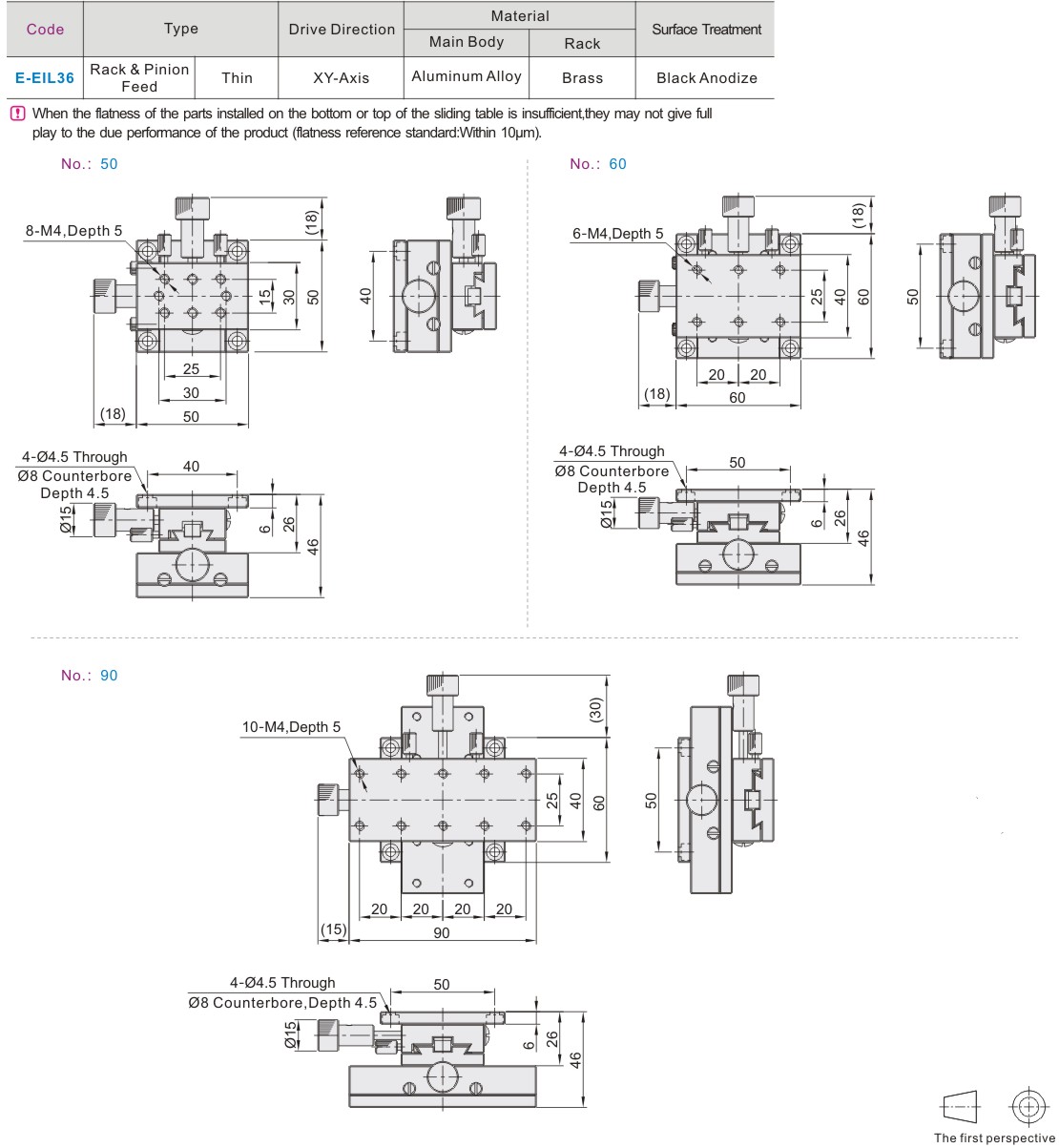

When the parts installed on the bottom or top of the slide are not flat enough. The product may not be able to perform as it should. (Reference standard for flatness: within 10um)
